Bituminous Membranes

StressPly Evolution

This elastomeric bitumen membrane flat roof system delivers exceptional flexibility and strength across diverse waterproofing applications. Advanced formulation provides superior thermal stability, mechanical resilience, and anti-ageing properties for long-term building protection.

View on NBS
Data Sheet
BIM Download

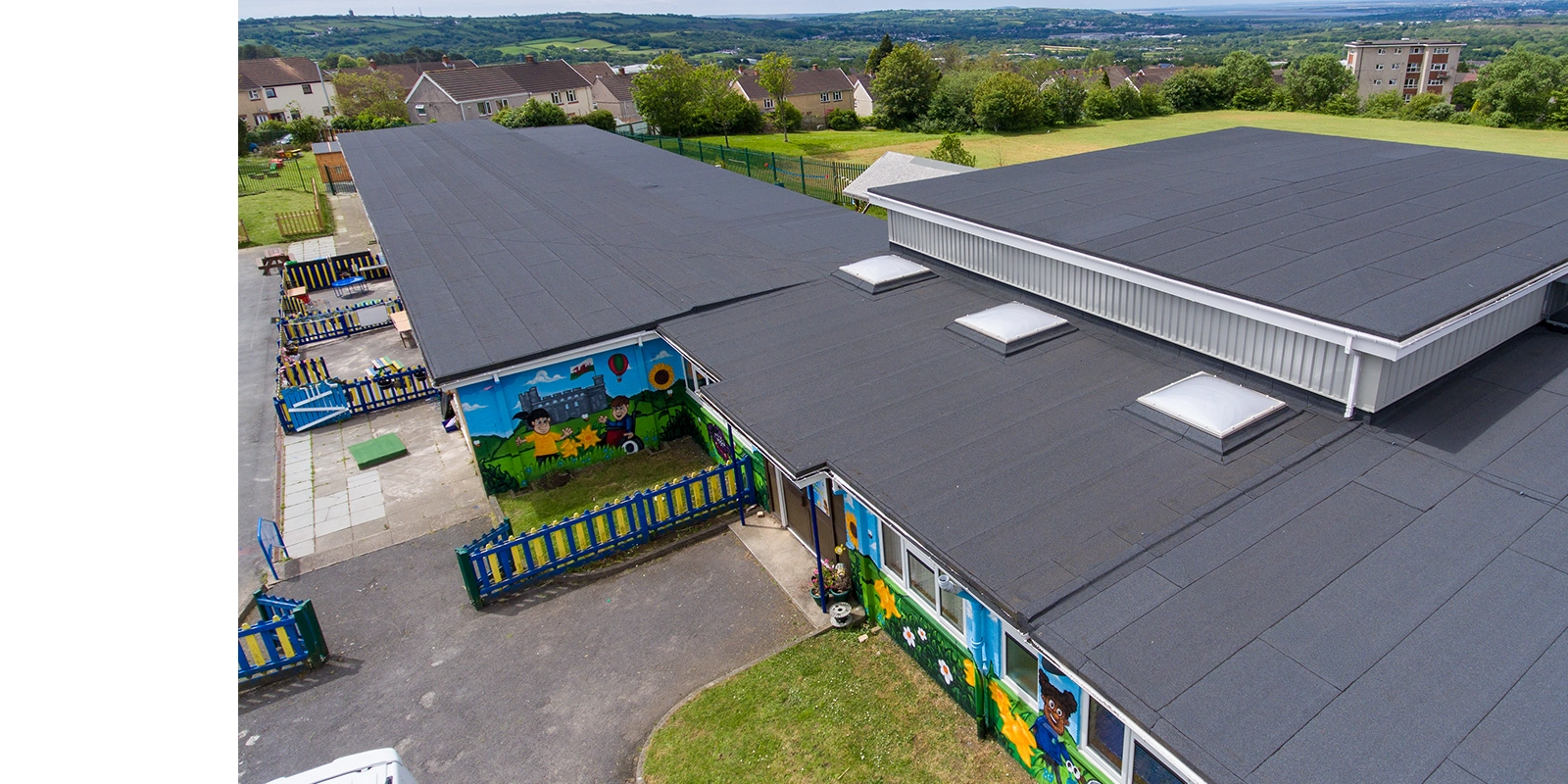

Mask Aerial view of primary school with black roof and colorful playground equipment

High tensile strength

1000 N/50mm (longitudinal) · EN 12311-1 · exceeds the 750 N/50mm BS 8747 threshold.

Waterproofing

Watertight at a head of at least 60 kPa · EN 1928.

Fire performance

BROOF(t4) · EN 13501-5.

Low-temperature flexibility

Cold flexibility to −25°C · EN 1109.

Long service life

30+ years, BBA-assessed · certified for blue roof / SUDS use · BBA 20/5800.

Why specify StressPly Evolution?

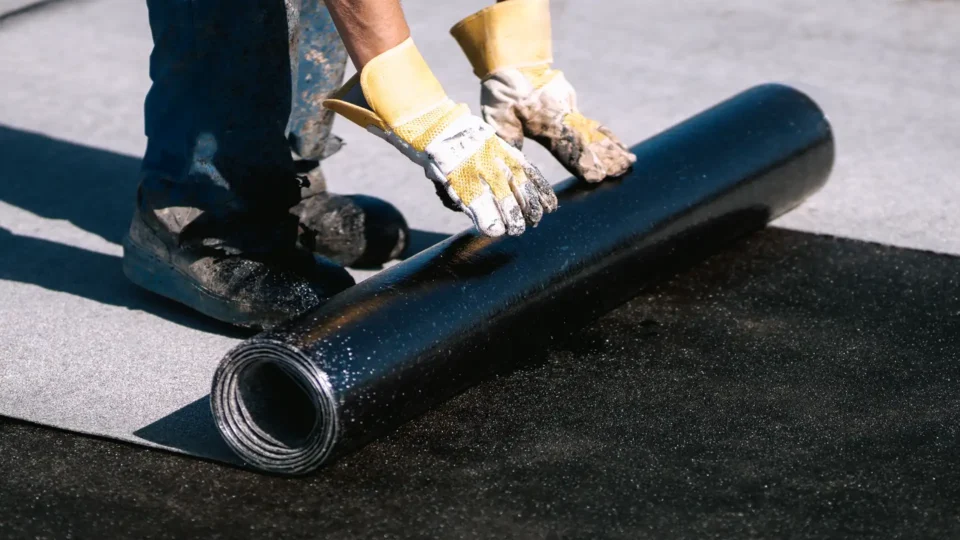

Worker installing black waterproof membrane with UV protection coating

Recycled content

Manufactured using recycled polymers, supporting circular economy objectives and project sustainability targets.

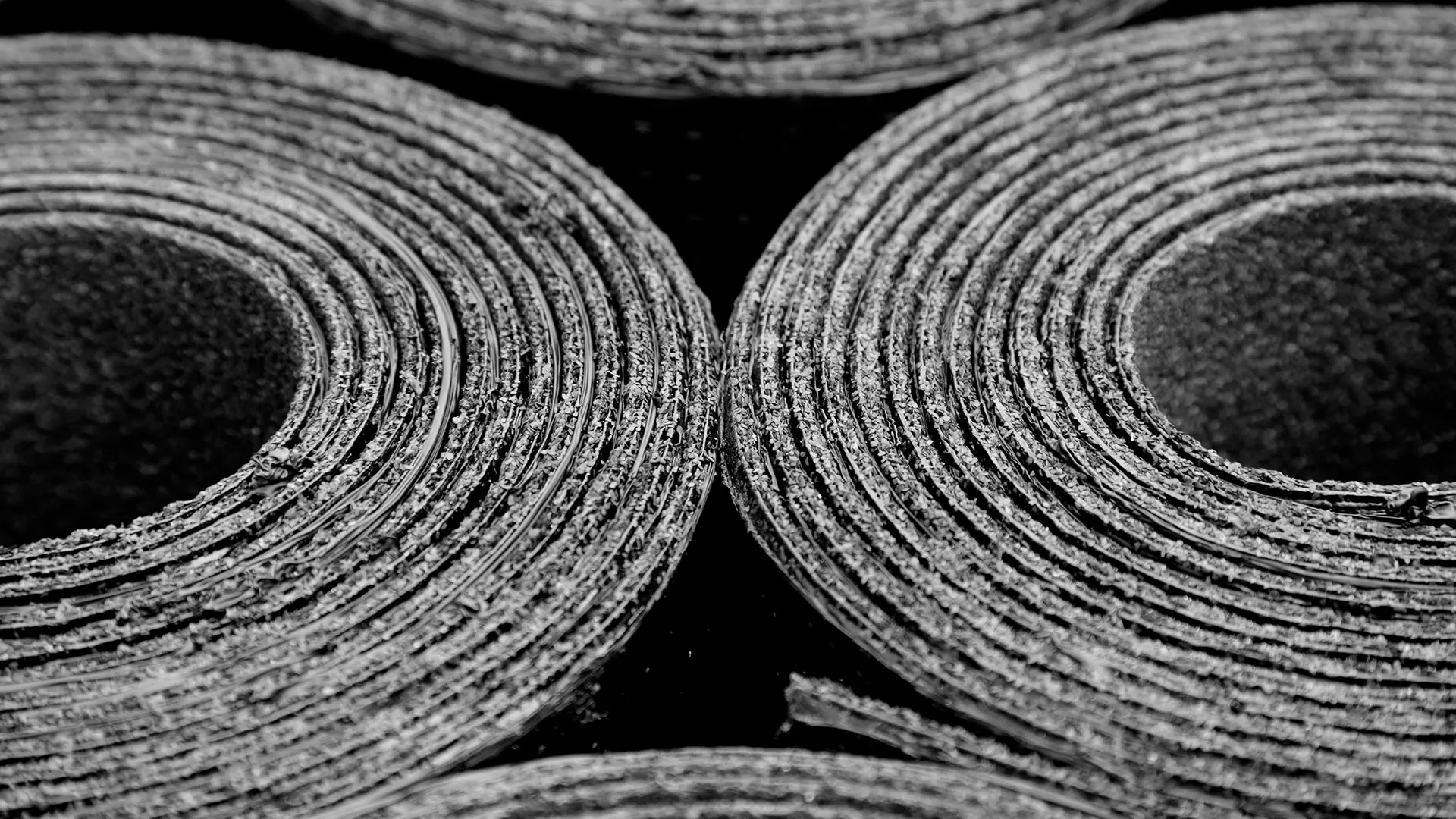

Close-up of reinforced cardboard layers showing concentric circular patterns and texture detail.

Reinforced durability

Composite reinforcement enhances dimensional stability, puncture resistance and long-term membrane performance.

Worker using torch to seal bituminous roofing membrane on flat roof surface

Thermal flexibility

Engineered to accommodate thermal movement while maintaining flexibility across seasonal temperature fluctuations.

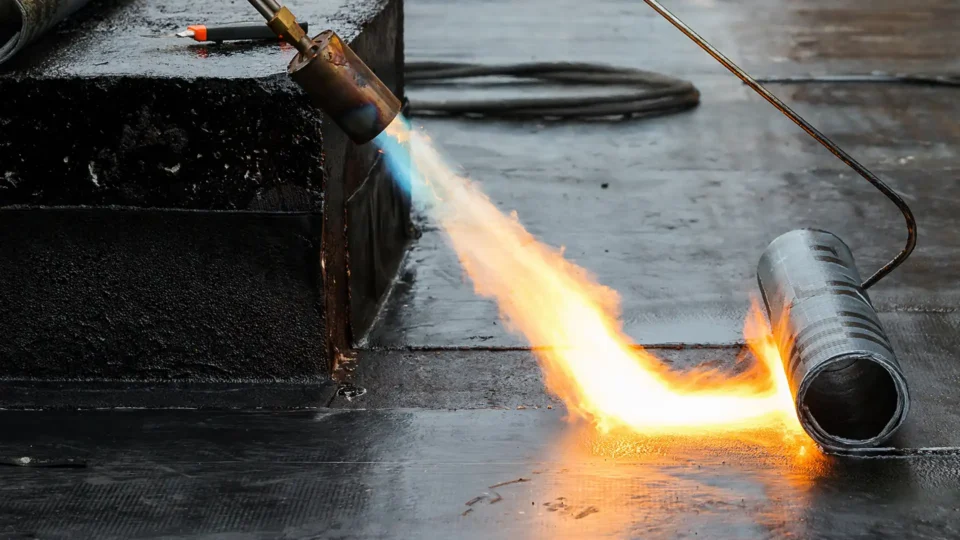

Blowtorch applying flame to roofing membrane installation on wet surface

Multi-layer protection

Built-up waterproofing assembly provides resilient protection through multiple waterproofing layers.

System Components

Multi-layer engineered protection system

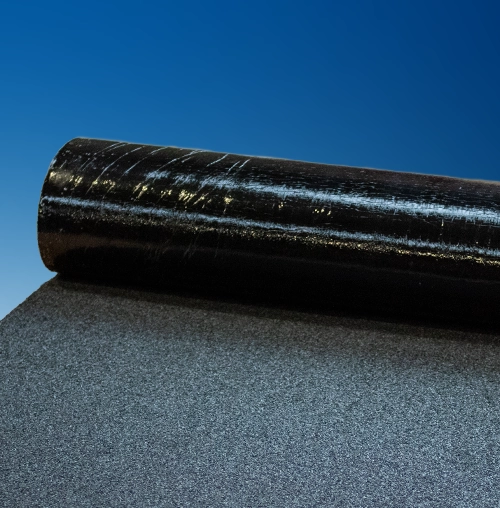

StressPly Evolution

Mineral Cap Sheet

UV protection and weatherproofing

Mineral slate granule finish with thermo-fusible installation film. Suitable for warm and inverted roof applications.

Rolled black bituminous membrane with gray granular surface against blue sky

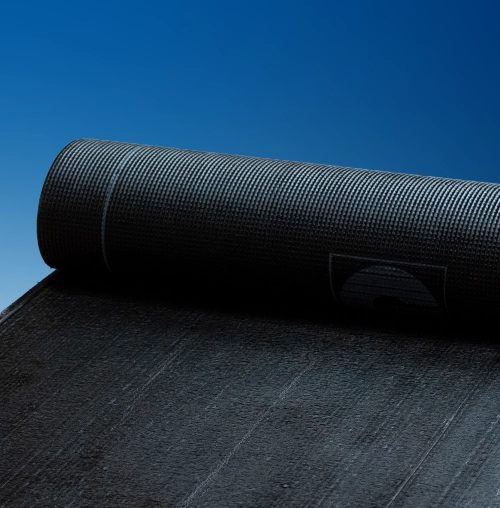

Torch Evolution Base Sheet

Reinforced Underlayment

Polyester reinforcement with SBS modifiers delivers exceptional tear and puncture resistance.

Rolled black bituminous base sheet material against clear blue sky

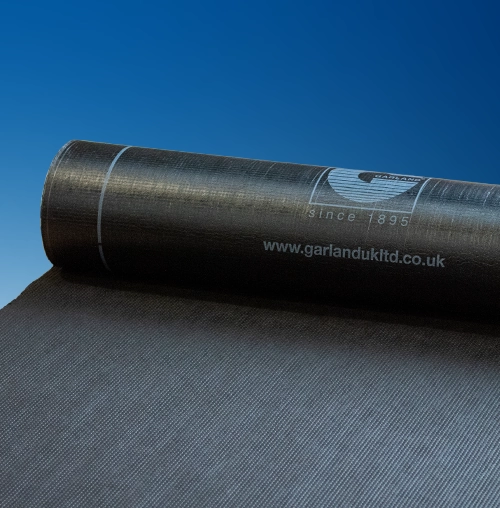

Torch Evolution VCL

Air and Vapour Control Layer (AVCL)

Prevents condensation damage

SBS modified vapour barrier stops water vapour infiltration that causes system failure.

Rolled black Torch Flex vapour barrier membrane with branding visible

Quick Reference

LayerTensile strength - L/T (N/5cm)
Thickness (mm)Low Temp. Flex (°C)Length (m)
Width (m)
StressPly Evolution1000/8004.6-2561.0
Torch Evolution Base Sheet850/6504.0-1581.0
Torch Evolution VCL
600/4003.0-20101.0

Need specification advice?

Your local Garland UK Technical Manager can help assess your roof, develop the appropriate specification, and recommend the right StressPly system for your project.

Find your Technical Manager
